Location: London, UK
Date: September ’25
📍 Project Summary
The Drains24 team attended site following reported drainage issues. Upon excavation and investigation, a cracked Buchan trap was discovered at depth. This required removal and replacement to restore full drainage functionality and provide the customer with future access for maintenance.
🔧 Scope of Work
- Excavation & Investigation
- Carefully excavated to expose the drainage line and inspect the fault.

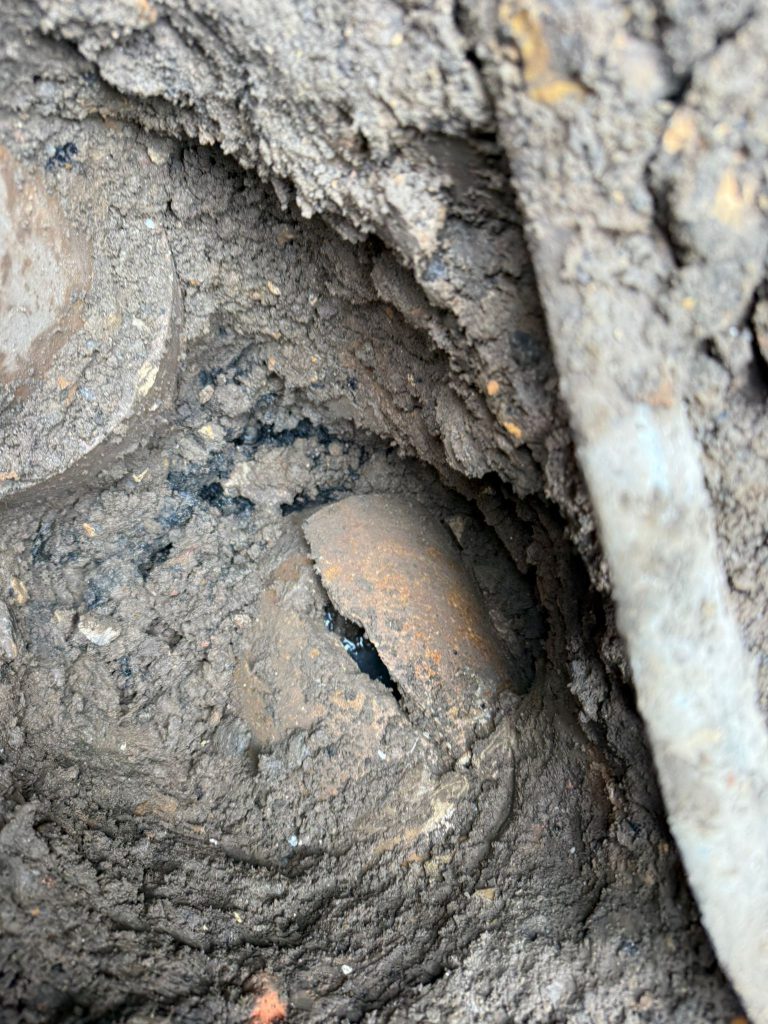

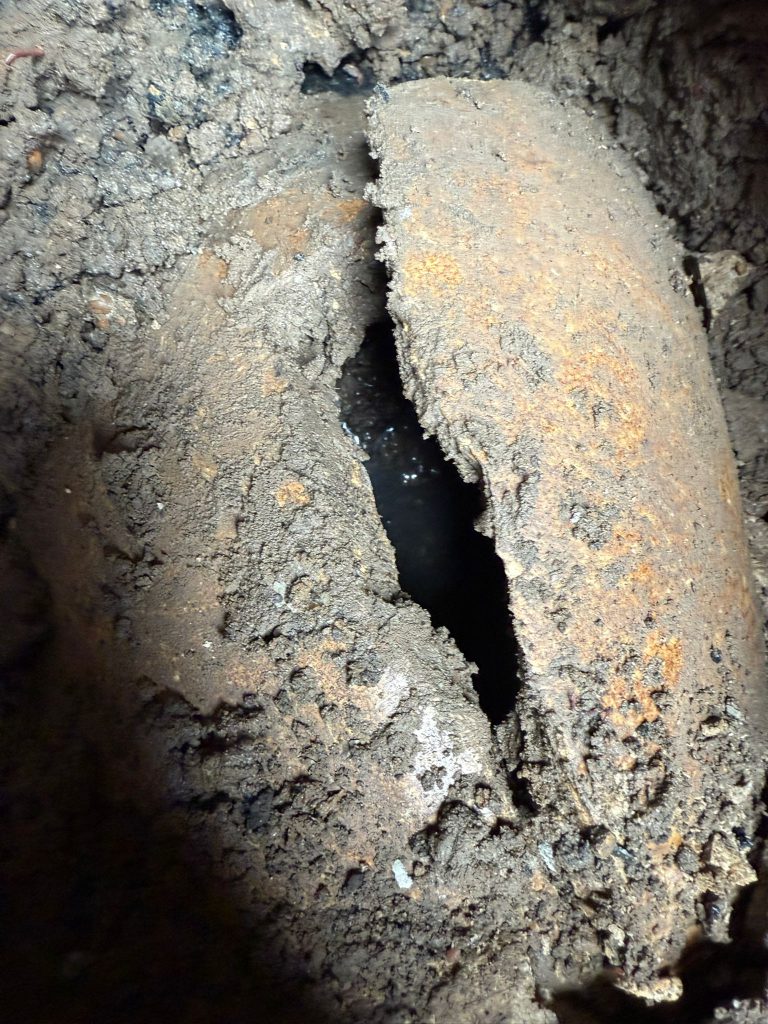

- Found a cracked Buchan trap, which was contributing to restricted flow and potential structural compromise.
- Pipework Installation
- Removed the damaged trap.
- Supplied and installed new 150mm uPVC pipework to restore the drainage flow and meet current specifications.
- New Manhole Construction

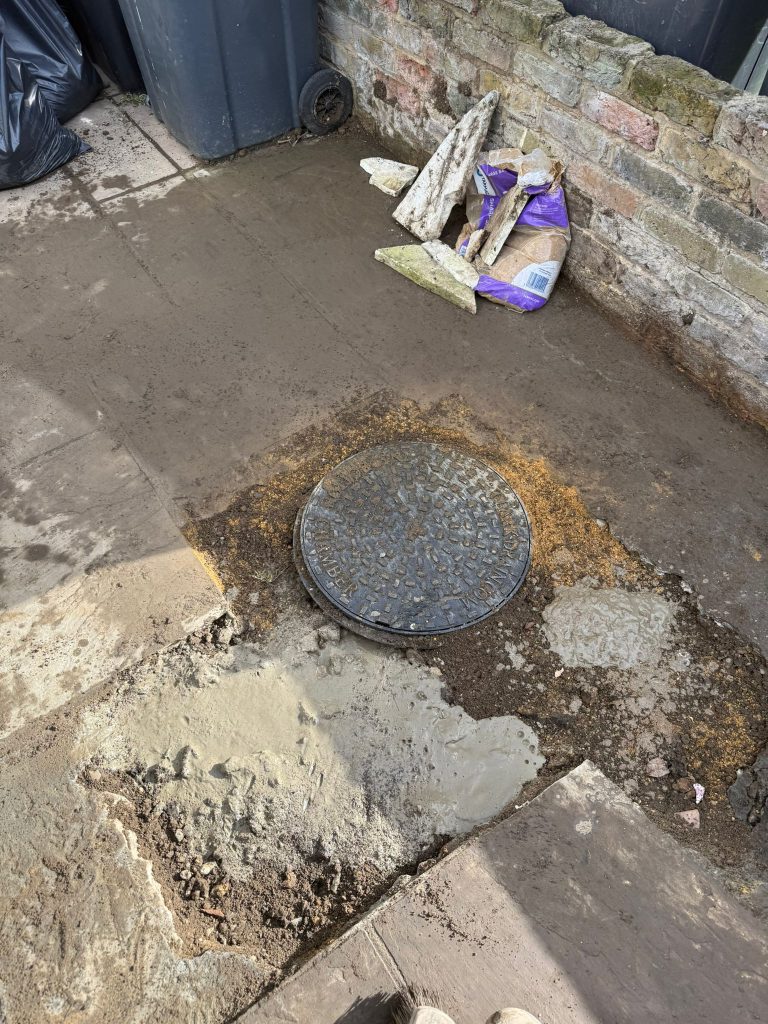

- Built a 3-ring concrete manhole chamber to provide future access to the pipe run.
- Fitted with a robust cover and frame at ground level for ease of inspection and jetting access.
🧱 Materials & Equipment Used
- 150mm uPVC underground drainage pipe
- Concrete manhole rings and base
- Cover and frame
- Excavation tools and safety barriers
- Backfill and compaction materials
✅ Outcome
- Damaged Buchan trap successfully removed.
- New pipework installed with proper gradient and flow direction.
- Manhole installed in line with current drainage standards.
- Site left clean and safe upon completion.
